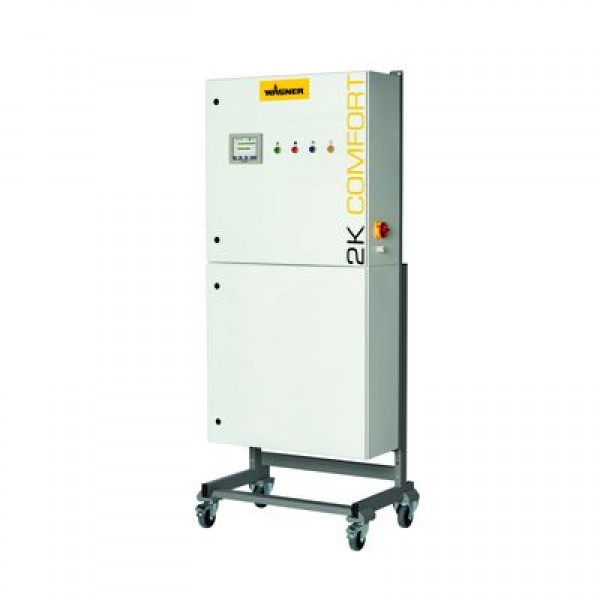

2K COMFORT
Mixing and dosing unit for multi-color applications
Product Code: 2K COMFORT
WAGNER 2K COMFORT is a new electronically controlled mixing and dosing unit for multi-color applications. Compared to the WAGNER FlexControl Smart, it can process up to 25 colors and four components at the same time. For a highly efficient coating process, the unit can also be integrated into a field bus system.- Color change in less than one minute
- Color change in less than one minute
- Saves up to 90% solvent during color change
- Parametrization also possible with tablet PC
- Best mixing results through AIS technology, patent pending
| MIXING ACCURACY | +/- 1% |
| MIXING RATIO | 0.1 : 1 - 50 : 1 |
| MATERIAL PRESSURE | Max. 325 / 530 bar (depending on the model) |
| FLOW RATE | 50 - 7000 cc / min (depending on the measuring cell) |
| COMPONENT A | Max. 25 |
| COMPONENT B | Max. 10 |
| COMPONENT C | Max. 10 |
| COMPONENT D | Max. 10 |
| FLUSHING FLUID A | 10 |
| FLUSHING FLUID B | 5 |
| FLUSHING FLUID C | 5 |
| FLUSHING FLUID D | 5 |
| GUNS | Max. 4 |
| MATERIAL TEMPERATURE | +5 °C - +60 °C; +41 °F - +140 °F |
| MATERIAL VISCOSITY | 20 - 2200 mPas, depending on measuring cell |
| PROCESSABLE MATERIAL | Water- and solvent-based material |
| PROCESSABLE COMPONENTS | 2K, 3K and 4K |
| DIMENSIONS (W X H X D) | Wall holder: 950 x 1700 x 350 mm; rack: 980 x 2010 x 580 mm |
