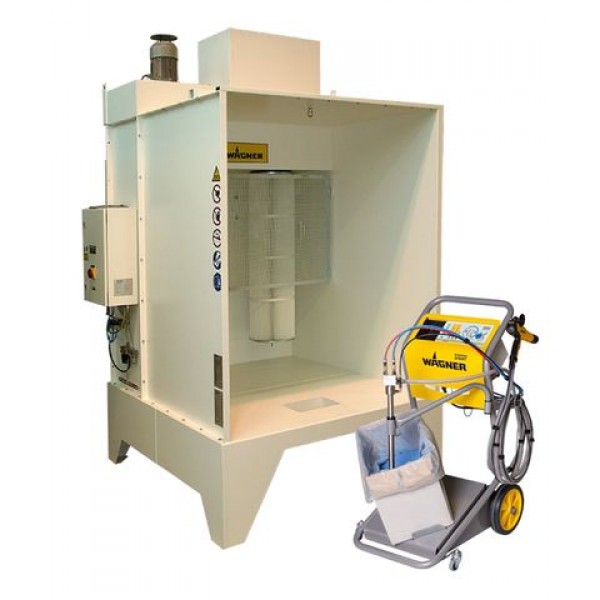

BASIC 4000 suspension booth
coating of individual parts
The BASIC 4000 suspension booth is suitable for the coating of individual parts or small series and is equipped with the basic functions required for a cost-effective system. It meets the technical requirements specified by CE and ATEX.
- Coating opening (W x H) 1420 mm x 1420 mm
- Small footprint
- Optimal also for medium-sized to small parts
- Integrated rotatable workpiece suspension hook
- Integrated suction unit with 4000 m³/h
- Ergonomic and fatigue-free working conditions through direct accessibility to workpiece
- Connection for overspray collection bag below housing
| INPUT VOLTAGE | 230 – 400 V |
| RATED POWER, DRIVE MOTOR | 3,00 kW |
| INPUT FREQUENCY | 50 Hz |
| FILTER SURFACE AREA | 40 m², 430,6 ft² |
| NUMBER OF FILTER CARTRIDGES | 2 |
| AIR VOLUME | 4000 m³/h |
| AIR CONSUMPTION | 25 Nm³/h |
