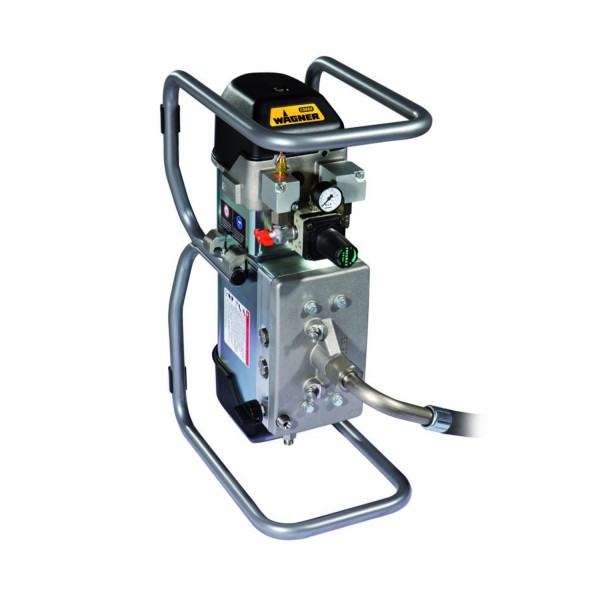

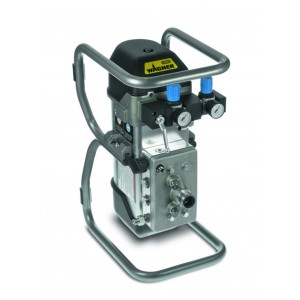

Cobra 40-25
High-pressure diaphragm pump
Product Code: Cobra 40-25
High-pressure piston diaphragm pump. Universally applicable for aggressive, abrasive, and shear-sensitive materials. Extremely low flushing agent consumption. For all applications up to 250 bar and 5 L/min multiple gun use.
| PUMP RATIO | 40 :1 |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| MATERIAL INLET | M–M 36x2 |
| MATERIAL OUTLET | M–G 3/8‘‘ |
| MATERIAL TEMPERATURE | 10 - 80 °C, 50.0 - 176.0 °F |
| AIR INLET PRESSURE | 2,5 – 6,3 bar, 36 – 91 PSI |
| AIR INLET CONNECTION | F–G 1/2‘‘ |
| OPERATING PRESSURE | 250 bar, 3626 PSI |
| MAX. STROKE RATE | 200 DS/min |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 25 cm³/DS, 1,53 in³/DH |
| AMBIENT TEMPERATURE | 10 – 60 °C, 50 – 140 °F |
| WEIGHT | 32,0 kg, 70.6 lb |
| MAX. SOUND LEVEL | 76 dB(A) |
| MATERIAL PH | 3,5 – 9,0 pH |
| MIN. AIR INLET Ø | 19 mm, 0.7 in |
