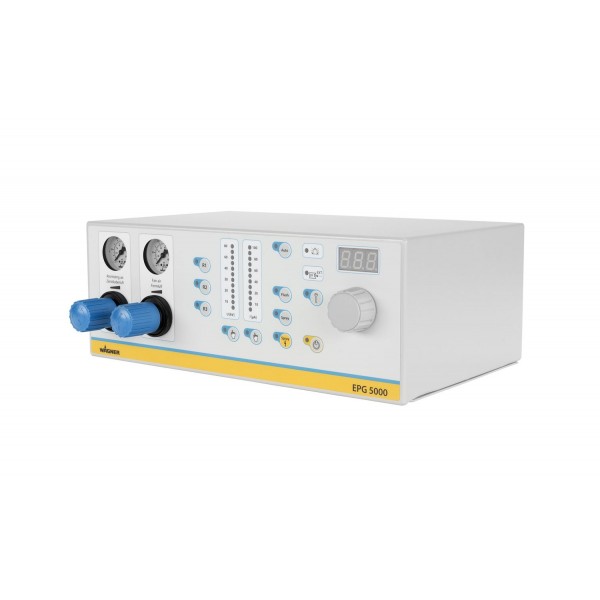

Control unit EPG 5000
Control unit for electrostatic automatic gun GA 5000
Product Code: Control unit EPG 5000
The EPG 5000 controls all WAGNER electrostatic automatic guns from the type GA 5000 for solvent-based paints. The control takes place manually or automatically via an external interface. This interface can be used to set and optimize all electric parameters in the coating process. The high tension can be variably adjusted in real-time in accordance with the contour of the workpiece.
| INPUT VOLTAGE | 115-230 VAC, 50 Hz / 60 Hz |
| INPUT POWDER | Max. 40 W |
| INPUT CURRENT | Max. 0,5 A |
| OUTPUT VOLTAGE | Max. 20 Vpp |
| OUTPUT CURRENT | Max. 1.0 A AC |
| HIGH VOLTAGE LIMITATION | 80 kV |
| SPRAY CURRENT LIMITATION | 100 μA |
| POLARITY | For negative ür negative HS generators |
| PROTECTION TYPE | IP 40 |
| INPUT AIR PRESSURE | 4.0 - 8.0 bar; 0.4 - 0.8 MPa; 58.02 - 116.03 psi |
| OPERATING TEMPERATURE | 0 °C - 40 °C |
| WEIGHT | 6,7 kg |
| WIDTH | 370 mm |
| HEIGHT | 136 mm |
| DEPTH | 295 mm |
| NUMBER OF GUNS MAX. | 1 |
