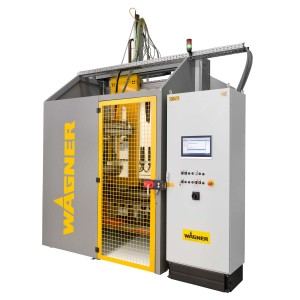

E-Line application solution
Application solution for powder coating
Product Code: E-Line application solution

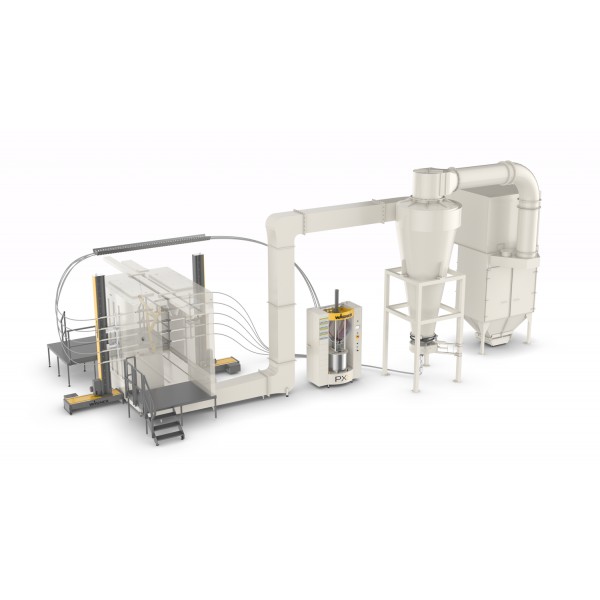

All components in one system
The WAGNER E-Line solution allows the customer to provide its wide range of diverse components with a perfect surface. This highly efficient coating system guarantees high process reliability with constant results.
- Optimal application results guaranteed with powerful PEA-C4 automatic guns, precise EPG-S2 modules and accurate moving systems
- Best airflow & highest transfer efficiency by special PVC booth construction and optimized inner geometry
- Low investment costs: Entry level PXE powder center with excellent price-performance ratio; complete control of all components (powder center, moving devices, application, booth, filter) in one central unit
- Improved recovery rate & minimized pressure loss thanks to the WAGNER energy efficiency package
- Reduced electrical power demand of the filter unit due to improved airflow of the system
| MAX. GUNS | 12x automatic + 2x manual or 14x automatic |
| GUNS | PEA C4 or PEA C4 XL 1.4 |
| MANUAL PLATFORMS | 1x pre-coating / 1x post-coating |
| SIZE | Max. 2000 (H) x 800 (W) |
| GUN SLOTS MAX. | 3 per side |
| VERTICAL UNIT | VU 2-1800 to VU 2-2400 |
| HORIZONTAL UNIT | RS1000 (manual device) or HU 1000 (electrical device) |
| POWDER CENTER | PXE (standard) or PXE (maximum) |
| TYPE OF INJECTORS | PI-F1 (80-360 g/min), PI-F1-S (80-450 g/min), HiCoatED (50-250 g/min) |
| CYCLONE & FILTER | 12.000 Nm³/h 18,5 kW or 16.000 Nm³/h 22 kW |
| CONTROL TYPE | All-in-one control |
| DISPLAY SIZE | 7" colour touch display |
