HiCoat-ED feed system

HiCoat-ED feed system

Feed system with little air

WAGNER
Product Code: HiCoat-ED feed system

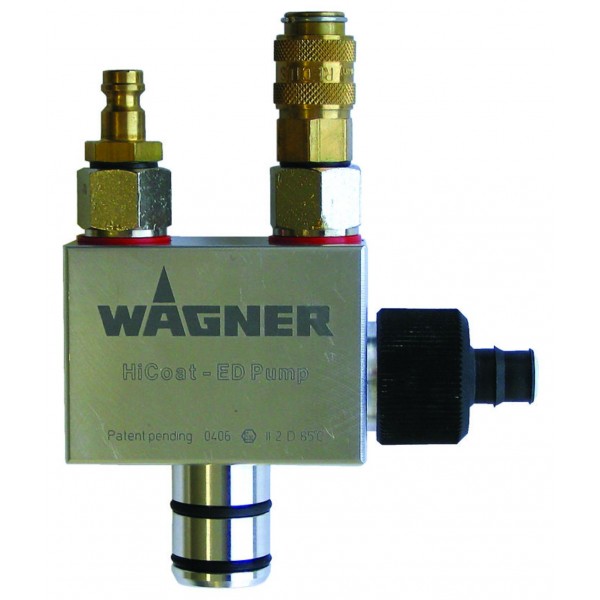

Feed system for supplying powder to powder guns with little air according to the Venturi principle.


  • Supplies powder using little air

  • More even coating thickness

  • Efficient material utilization

  • Lower material consumption costs

  • Better coating coverage in depressions

  • Higher coating speed

  • No pulsing of powder cloud

  • Higher transfer efficiency

MAX. DELIVERY HEAD 4,0 m, 13,1 ft
MAX. FEED LINE LENGTH 10 m, 32,8 ft
WIDTH 28 mm, 1.1 in
HEIGHT 115 mm, 4.5 in
DEPTH 110 mm, 4.3 in
FEED LINE, INSIDE Ø 8 – 10 mm, 0.3 – 0.4 in
