Peristaltic conveyor system
intermediate feeding using little air
Product Code: Peristaltic conveyor system

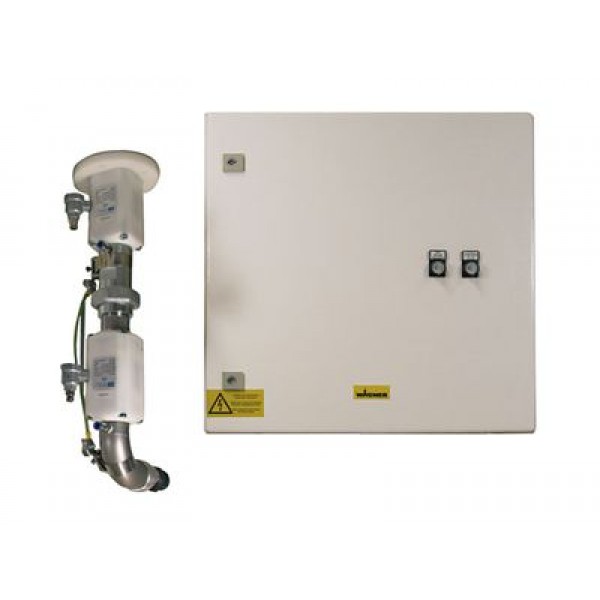

The peristaltic conveyor system is used for the intermediate feeding of coating powders using little air by means of alternating pinch valves.
- Feed requires little air
- Minimal dust formation
- Large delivery capacity
- Low investment costs
- Low-wear feed technology
- Low maintenance
- Robust engineering
- High availability
| INPUT VOLTAGE | 24 V |
| INPUT POWER | 25 W |
| AIR INLET PRESSURE | 0,6 MPa, 6,0 bar, 87 PSI |
| MAX. DELIVERY HEAD | 1,5 m, 4,9 ft |
| MAX. FEED LINE LENGTH | 12 m, 39,4 ft |
| MAX. POWDER FEED RATE | 2000 g/min, 4.4 lb/min |
