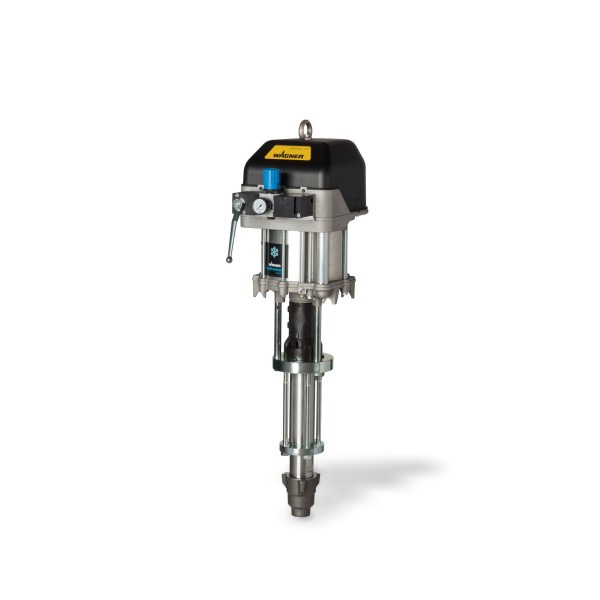

PROTEC 60-240
High-pressure piston pumps
Protective Coating
Product Code: PROTEC 60-240
High-pressure piston pump, stainless steel, for Airless applications up to 480 bar and 7,2 L/min. Extremely robust and ideal for heavy corrosion protection.
| OPERATING PRESSURE | 480 bar, 6962 PSI |
| VOLUMETRIC FLOW PER DOUBLE STROKE | 240 cm³/DH, 14,65 in³/DH |
| MATERIAL INLET | I–G 1 1/2'' |
| MATERIAL OUTLET | A–M 24x1,5 |
| AIR INLET PRESSURE | 2,5 – 8,0 bar, 36 – 116 PSI |
| MATERIAL TEMPERATURE | 5 - 80 °C, 41 - 176 °F |
| AMBIENT TEMPERATURE | 5 – 60 °C, 41 – 140 °F |
| MATERIAL PH | 3.5 – 9 pH |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| WEIGHT | 58,0 kg, 127.9 lb |
