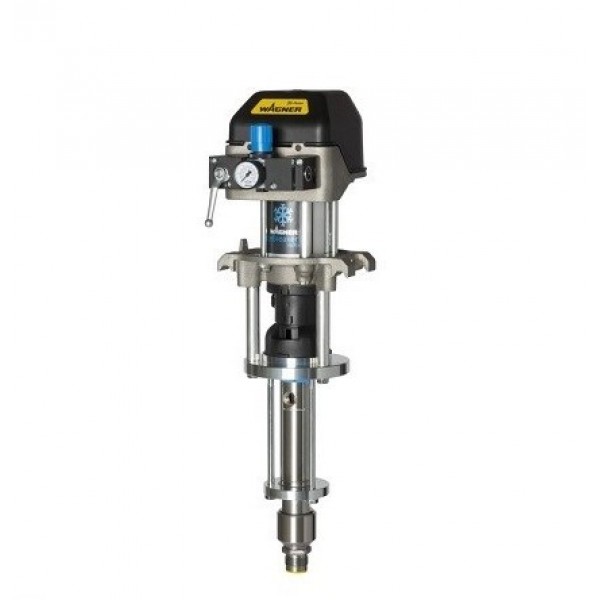

Puma 15-70
High-pressure piston pumps
Finishing
Product Code: Puma 15-70
High-pressure piston pump, stainless steel, for AirCoat applications up to 120 bar and 4 L/min. Ideal, for example, for industrial coating in the wood and metals industries.
| OPERATING PRESSURE | 120 bar, 1740 PSI |
| VOLUME FLOW PER DOUBLE STROKE | 70 cm³/DS, 4.27 in³/DS |
| MATERIAL INLET | M–M 36x2 |
| MATERIAL OUTLET | M–M 24x1.5 |
| INLET AIR PRESSURE | 2,5 – 8,0 bar, 36 – 116 PSI |
| MATERIAL TEMPERATURE | 5 - 80 °C, 41 - 176 °F |
| AMBIENT TEMPERATURE | 5 – 60 °C, 41 – 140 °F |
| PH VALUE OF MATERIAL | 3.5 – 9 pH |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 20 bar, 290 PSI |
| WEIGHT | 18.0 kg, 39.7 lb |
