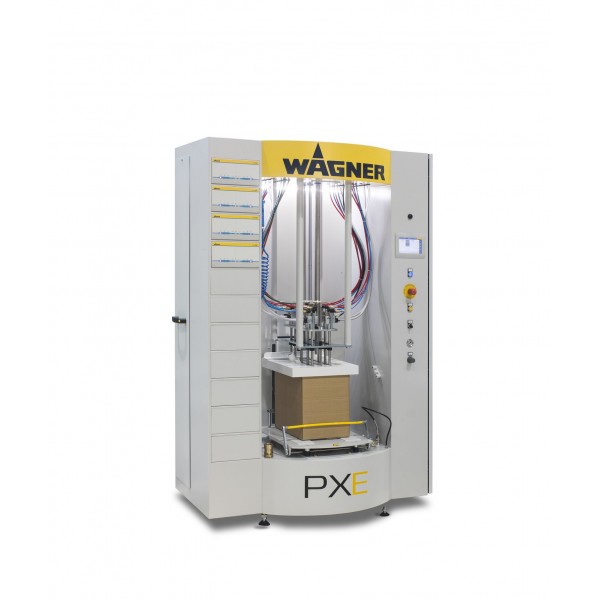

PXE powder center
powder supply unit
Product Code: PXE powder center
The benchmark for powder supply with the best price-performance ratio
The WAGNER PXE solution provides complete control of all the different components in one central unit: Powder center, moving devices, application, booth & filter. The WAGNER PXE powder center fulfills all requirements for the powder supply of an automatic coating system.
PXE comes either as standard version or as a modular powder center version with integrated vibrating and fluidizing unit to feed directly from the powder box.
- Intuitive handling: The 7" all-in-one color touch display allows the whole system to be operated from one central control unit.
- Flexible powder feeding: Powder supply directly from the powder box or WAGNER fluidized hopper, depending on customer requirements.
- Increased productivity: Powder supply of up to 22 guns from WAGNER fluidized hopper or up to 20 guns directly from the box
| CONFIGURATION | PXE (Standard version) / (Maximum version) |
| MAX. INJECTORS | 22 / 20 |
| INJECTOR TYPE | PI-F1 - HiCoat ED / PI-F1 - HiCoatED |
| PXE WITH LIGHT | not available / Standard |
| CONTROL UNIT | 7" color touch display / 7" color touch display |
| SCOPE OF CONTROL | Total system control (application, powder center, moving devices, booth, filter) / Total system control (application, powder center, moving devices, booth, filter) |
| WAGNER POWDER HOPPER | Fluidized / Fluidized & vibrated |
| FEEDING DIRECTLY FROM THE BOX | not available / standard |
| FRESH POWDER DOSAGE | Manual refill of powder / Manual refill of powder |
| MAXIMUM POWDER AMOUNT | 30 kg / 30 kg contrainer or carton size (<30 kg) |
| SIEVE INTEGRATION | not available / not available |
| POWDER LEVEL CONTROL | Standard / Standard |
| FILTER | Final Filter (FF) / Final Filter (FF) or Integrated Filter (IF) |
| FOOTPRINT | 1,24m² / 1,24m² or 2,24m² |
