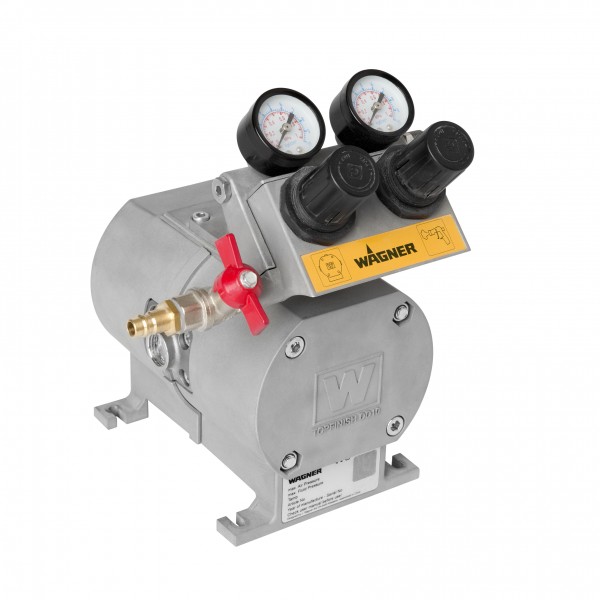

TOPFINISH DD10
Low-pressure - Pneumatically-operated double diaphragm pump
Product Code: TOPFINISH DD10
Pneumatically-operated double diaphragm pump
Best finishing results with a clear cost saving – with the double diaphragm pump WAGNER TOPFINISH DD10 for supplying manual and automatic Airspray guns. It can be used, for example, when staining wooden furniture, coating metal parts, and applying chrome paint to plastic parts.
- Pulsation-free material flow without the use of a material pressure regulator as is the case in conventional pumps, leading to a uniform spray pattern
- Fast and easy handling and maintenance
- Can be integrated into the widest variety of installations without any problems
- The parts that come into contact with the material are made exclusively of stainless steel
- Low pump volume results in a significant reduction of waste and solvents
|
PRESSURE RATIO |
1:1 |
|
OPERATING PRESSURE |
1-8 bar |
|
VOLUMETRIC FLOW WITH FREE DRAINAGE |
10l |
|
VOLUMETRIC FLOW PER DOUBLE STROKE |
40 cc |
|
MATERIAL INPUT |
G 1/2″ |
|
MATERIAL OUTPUT |
G 3/8″ |
|
AIR OUTPUT |
G 1/4″ |
|
MATERIAL TEMPERATURE |
4 – 40°C |
|
MATERIAL PH VALUE |
3,5 – 9 |
|
MATERIAL TOUCHED PARTS |
Stainless steel 1.4301 |
|
DIAPHRAGM MATERIAL |
PA 11 |
|
DIMENSIONS |
192 x 142 x 175 (BxTxH without controller) 192 x 165 x 265 (BxTxH with controller) |
|
WEIGHT |
3,1 kg without controller; 4,1 kg with controller |
