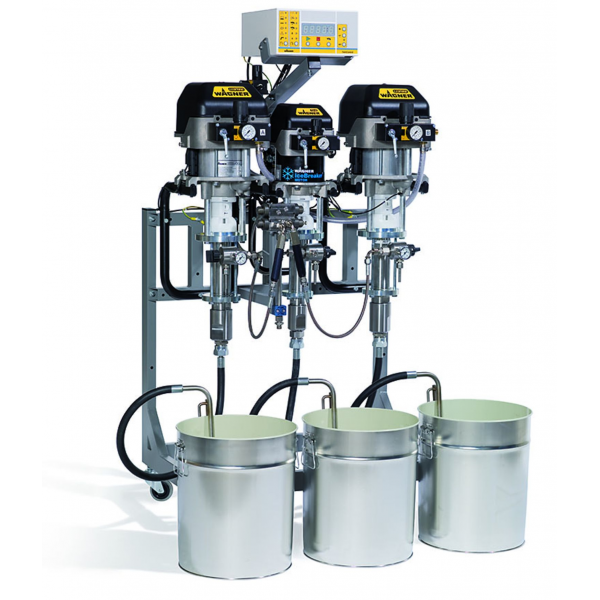

TwinControl 48-110
Electronic mixing and dosing system
Electronic 2K mixing system for AirCoat and Airless applications up to 370 bar. Including flushing pump and fully automatic flushing. Also suited to higher viscosity Protective Coating products. Optional with second paint.
| ARTICLE NUMBER | 2340477 |
| MAINS INPUT VOLTAGE (NON-ATEX) | 115 – 230 V |
| INPUT FREQUENCY (NON-ATEX) | 50 – 60 Hz |
| AIR INLET PRESSURE | 5,0 – 8,0 bar, 73 – 116 PSI |
| INLET AIR CONNECTOR | I–G 1/2" |
| MIXING RATIO | 0.1:1 – 20:1 |
| MATERIAL PRESSURE | 370 bar, 5366 PSI |
| MATERIAL INLET | A–M 36x2 |
| MATERIAL OUTLET | A–G 3/8'' |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 5 bar, 73 PSI |
| MATERIAL TEMPERATURE | 5 - 60 °C, 41.0 - 140.0 °F |
| AMBIENT TEMPERATURE | 5 – 40 °C, 41 – 104 °F |
| PH VALUE OF MATERIAL | 3,5 – 9,0 pH |
