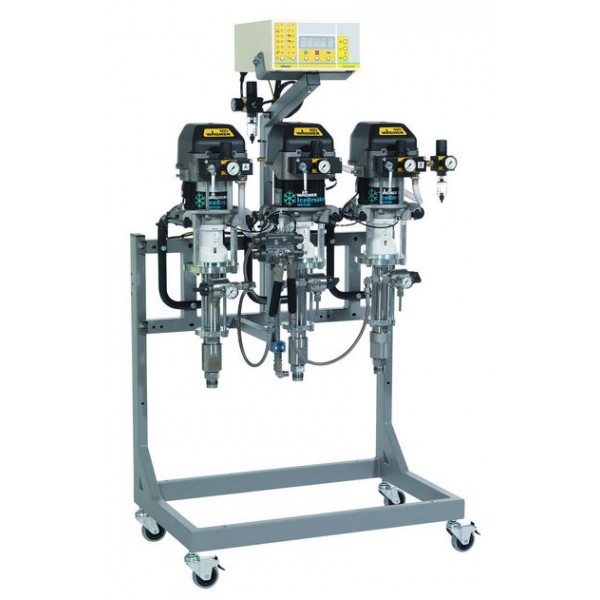

TwinControl 5-60
Electronic mixing and dosing system
Electronic 2K mixing system for Airspray applications. Including flushing pump and fully automatic air-solvent flushing. Second color can be retrofitted with extension set.
| INPUT VOLTAGE (NOT ATEX) | 115 – 230 V |
| INPUT FREQUENCY (NOT ATEX) | 50 – 60 Hz |
| AIR INLET PRESSURE | 5,0 – 8,0 bar, 73 – 116 PSI |
| AIR INLET CONNECTION | I–G 1/2" |
| MIXING RATIO | 0,1:1 – 20:1 |
| MIXING ACCURACY | ± 2% |
| MATERIAL PRESSURE | 40 bar, 580 PSI |
| VOLUME FLOW AT A 1:1 MIXING RATIO (MAX.) | 3.6 l/min |
| VOLUME FLOW AT A 4:1 MIXING RATIO (MAX.) | 2.3 l/min |
| VOLUME FLOW AT A 10:1 MIXING RATIO (MAX.) | 2 l/min |
| VOLUME FLOW AT A 20:1 MIXING RATIO (MAX.) | 1.9 l/min |
| MATERIAL INLET | M–M 36x2 |
| MATERIAL OUTLET | A–G 3/8'' |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 5 bar, 73 PSI |
| MATERIAL TEMPERATURE | 5 - 60 °C, 41.0 - 140.0 °F |
| AMBIENT TEMPERATURE | 5 – 40 °C, 41 – 104 °F |
| MATERIAL PH | 3,5 – 9,0 pH |
