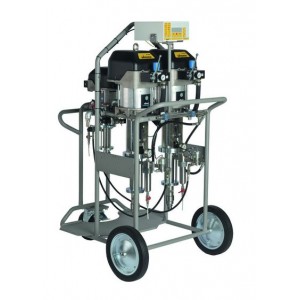

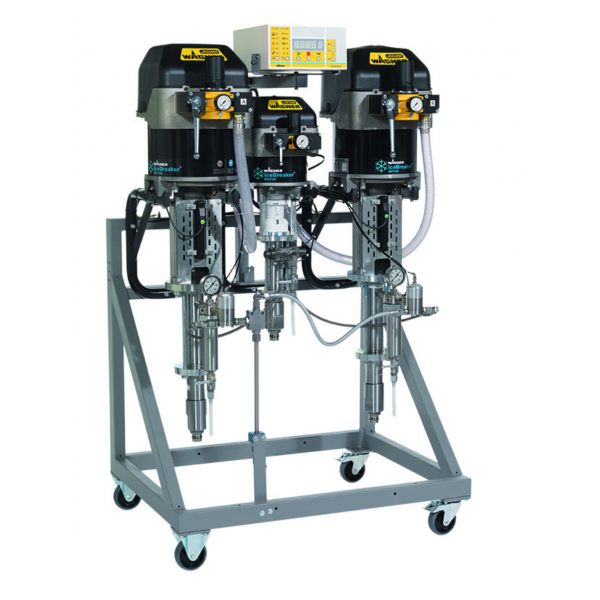

TwinControl 75-150
Electronic mixing and dosing system
Product Code: TwinControl 75-150
Electronic 1-paint 2K mixing systems for heavy corrosion protection. Airless applications up to 530 bar with single or multiple gun use, including flushing pump.
| MAINS INPUT VOLTAGE (NON-ATEX) | 115 – 230 V |
| INPUT FREQUENCY (NON-ATEX) | 50 – 60 Hz |
| AIR INLET PRESSURE | 5,0 – 8,0 bar, 73 – 116 PSI |
| INLET AIR CONNECTOR | I–G 1" |
| MIXING RATIO | 0.1:1 – 10:1 |
| MATERIAL PRESSURE | 530 bar, 7687 PSI |
| MATERIAL INLET | I–G 1 1/2'' |
| MATERIAL OUTLET | A–G 1/2'' |
| MAX. MATERIAL PRESSURE AT PUMP INLET | 5 bar, 73 PSI |
| MATERIAL TEMPERATURE | 5 - 60 °C, 41.0 - 140.0 °F |
| AMBIENT TEMPERATURE | 5 – 40 °C, 41 – 104 °F |
| PH VALUE OF MATERIAL | 3,5 – 9,0 pH |
